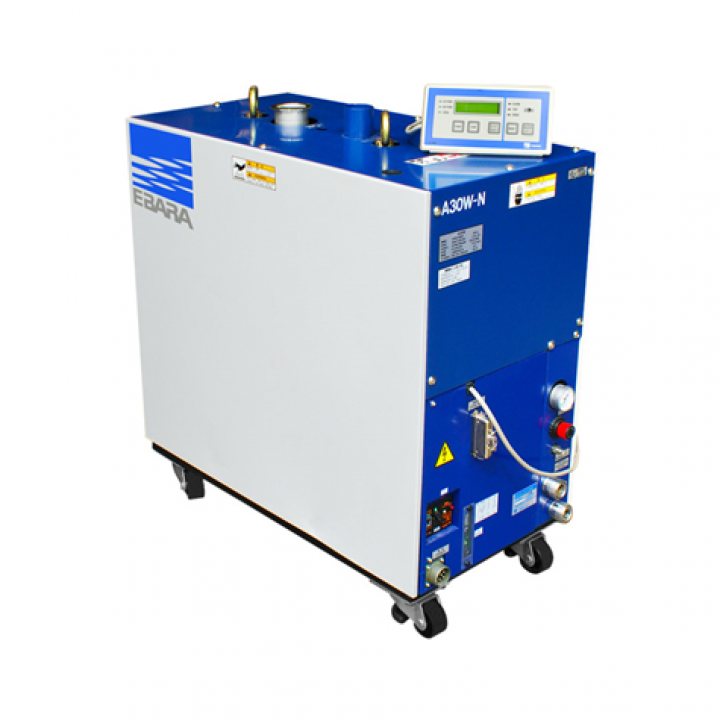

Ebara A30W rebuilt Dry vacuum pump
Ebara A30W rebuilt Dry vacuum pump
| Model | A30W |
|---|---|
| Manufacturer | Ebara |
| Unit Price | $9,500 |
| Type | Dry Pump |
| Number of Unit | 2 |
| Pumping Speed (60Hz) | 216 m³/h ( 127 cfm, 3600 lpm ) |
| Ultimate pressure ( 60Hz ) | 2.0 x 10¯³ mbar |
| Dimension ( L x W x H ) | 895 x 400 x 485 (mm) |
| Electrical Supply ( Main breaker ) | 208 / 230V, 50 / 60 Hz, 3 Ph ( 25A ) |
| Rotational Speed | 3,440 rpm |
| Inlet Connection | NW50 |
| Outlet Connection | NW40 |
| Utility ( Water / N2 flow ) | 3.5 lpm, 4 Kg/cm² / 10~13 lpm |
| Motor Power | 2.2 + 1.5 Kw |
| Oil capacity | 0.8 L |
| Weight | 330 Kg |
| Condition | Refurbished |
