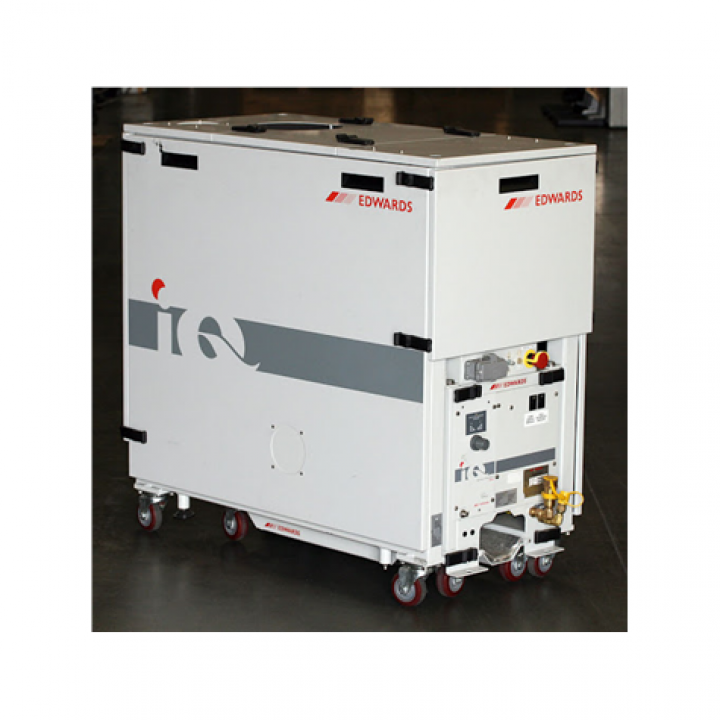

Edwards iQDP80/iQMB500 rebuilt Dry vacuum pump
Edwards iQDP80/iQMB500 rebuilt Dry vacuum pump
| Model | iQDP80/iQMB500 |
|---|---|
| Manufacturer | Edwards |
| Unit Price | $11,000 |
| Type | Dry Pump |
| Number of Unit | 1 |
| Pumping Speed (60Hz) with QDP80 | 460 m³/h ( 272 cfm, 7668 lpm ) |
| Ultimate pressure ( 60Hz ) | 7.0 x 10¯⁴ mbar |
| Electrical Supply | 208 / 230V, 50 / 60 Hz, 3 Ph |
| Inlet Connection | ISO100 |
| Outlet Connection | NW40 |
| Utility ( Water / N2 flow ) | 216 lph / 7 lpm |
| System Power at ult. | 4.0 Kw ( iQDP80 ) + 2.2 Kw ( iQMB500 ) |
| Dimension ( L x W x H ) | 2.04 L |
| Weight | 299 Kg ( Direct mount ), 359 Kg ( Frame mount ) |
| Condition | Refurbished |
