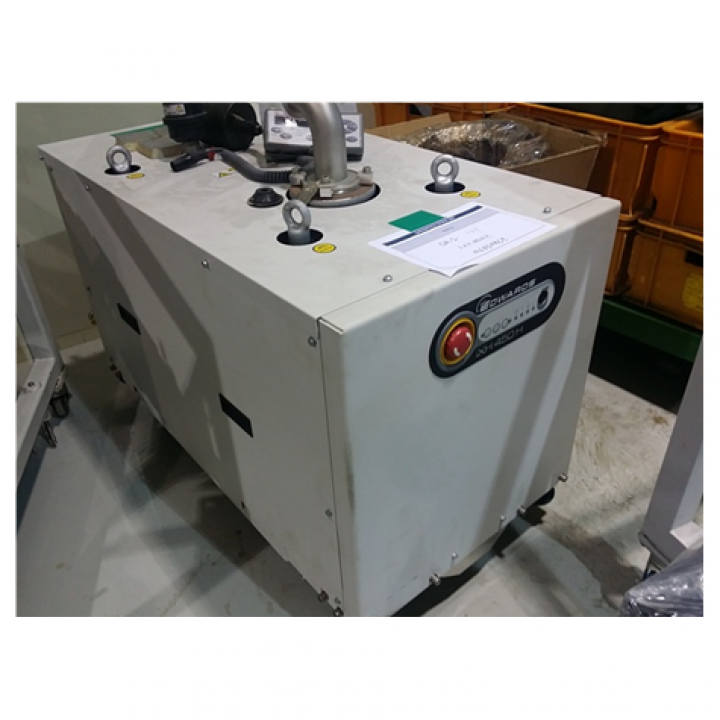

Edwards iXH450H rebuilt Dry vacuum pump
Edwards iXH450H rebuilt Dry vacuum pump
| Model | iXH450H |
|---|---|
| Manufacturer | Edwards |
| Unit Price | $17,000 |
| Type | Dry Pump |
| Number of Unit | 1 |
| Pumping Speed (60Hz) with QDP80 | 475 m³/h ( 280 cfm, 7918 lpm ) |
| Ultimate pressure ( 60Hz ) | 5.0 x 10¯³ Torr |
| Electrical Supply | 208 / 230V, 50 / 60 Hz, 3 Ph |
| Inlet Connection | ISO63 |
| Outlet Connection | NW40 |
| Utility ( Water / N2 flow ) | 6 lpm / 96 slm |
| System Power at ult. | 7.7 Kw |
| Dimension ( L x W x H ) | 1,000 x 517 x 650 (mm) |
| Weight | 455 Kg |
| Condition | Refurbished |
